NOVO DR Ltd. offers innovative, rugged, and reliable Portable Digital Radiography systems.

NOVO TOUCH PRO SOFTWARE

Key Software FeaturesTOUCH PRO SOFTWARE

The NOVO Touch Pro Software is a proprietary software developed from the ground up to provide the best experience and functionality for field and laboratory operations.

Software Highlights

• User friendly, native touch interface
• Intuitive operation for grabbing X-Ray images,
processing, archiving and sharing
• Built-in tools such as the Genie, Line Profile, SRb,
DWT, Stitching, Image Statistics and more
• Supports various International Standards
• Supports different file formats such as TIF, DICONDE
• Controls NOVO accessories, supports wired and
wireless communication, activates a variety of X-Ray
sources and more
• Compatible with the latest touch screen technology
and standard PC’s operating with Windows® 10
• Option to connect keyboard and mouse

Key Software Features

• GENIE – One Touch Enhancement
• Auto Wall Thickness Calibration and Measurement
• Auto Basic Spatial Resolution (SRb calculator)
• Pixel Map
• Line Profile
• DWT (Double Wall Thickness Technique)
• Manual & Automatic Image Stitching
• Averaging (Frame Integration)
• Image Statistics
• 1600% Zoom
• Annotations – Text, highlight, arrows, etc.
and many more…

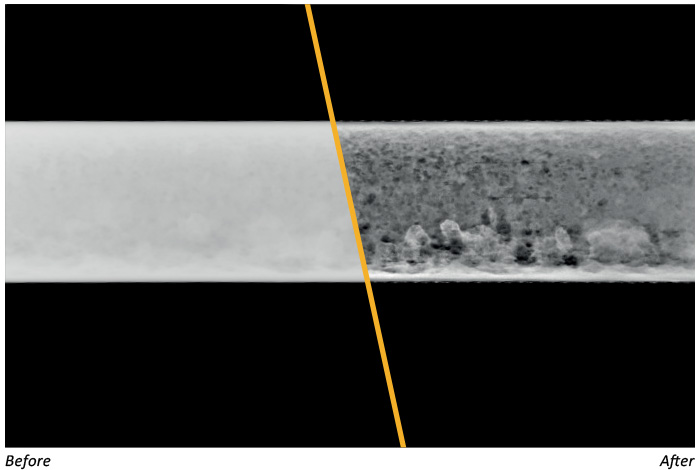

	The Genie – Image Enhancement Feature Now – 4 times faster!

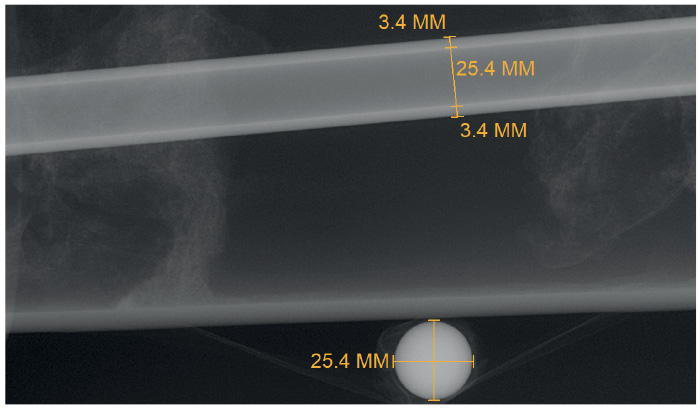

	Wall thickness tool
Automatic measurement calibration, fast, easy and automatic wall thickness measurements

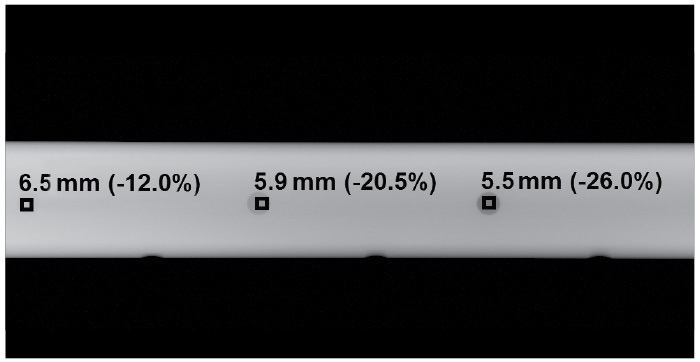

	DWT
Simple and intuitive Double Wall Thickness Technique Tool – converting gray levels into material thickness

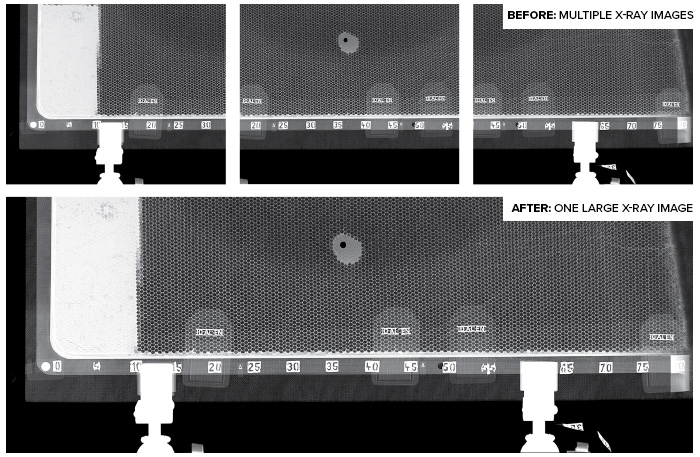

	Stitching Feature
Stitch multiple images using our easy to use, Manual Stitching feature or our super fast, Automatic Stitching feature

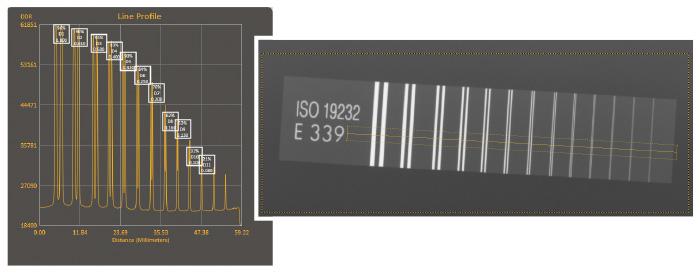

	Auto Basic Spatial Resolution Calculator
Select the region of interest and leave the rest to the NOVO SRb calculator
